Product

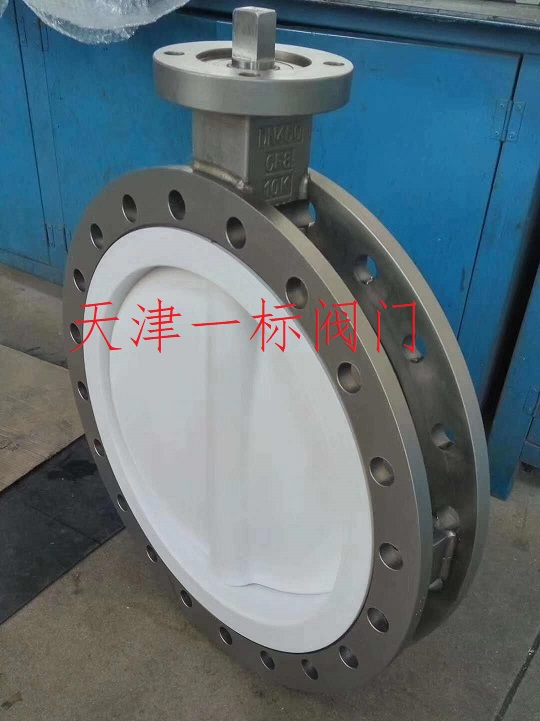

PTFE butterfly valve

Brand：Yibiao 型號：YD71F-10/16

Product Introduction
The PTFE butterfly valve is designed to adapt to corrosive environments with strong acids and alkalis, as well as the needs of various special fields such as petroleum, chemical, and food. The valve body is made of PTFE, which has a strong anti-corrosion effect. Under normal conditions, it can replace stainless steel valve bodies and has a higher cost-effectiveness.
Product Name: PTFE Butterfly Valve
Manufacturer: Tianjin Yibiao Valve Manufacturing Co., Ltd
Product brand: Tianjin Yibiao
Test pressure: nominal pressure multiplied by 1.1 times
Valve body: cast iron, ductile iron, aluminum stainless steel CF8、CF8M、CF3M
Valve seat: PTFE
Drive forms: manual, pneumatic, electric, hydraulic
Applicable temperature: -29~425 ℃ (carbon steel) -40~+550 ℃ (stainless steel)
Connecting flange: JB/T79.GB913.HG20592
