1、 Product definition and core differences

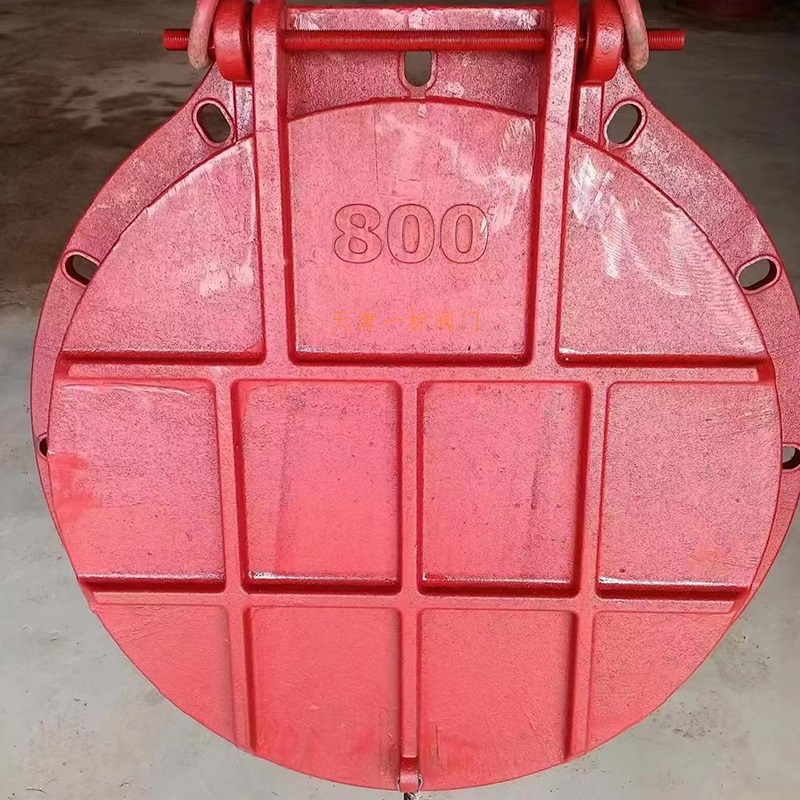

Cast iron flap door
Made of gray cast iron, the valve plate and seat are sealed with copper alloy, suitable for one-way water stop, with a standard leakage rate of ≤ 1.25L/min · m.
Advantages: Low cost (about 450-500 yuan/unit for DN600), strong impact resistance, but heavy (30% heavier than steel for the same specifications), and prone to corrosion.
Steel flap door
The main body is made of Q235 carbon steel or stainless steel (304/316), and the sealing surface is made of rubber or polyurethane, supporting bi-directional pressure (≤ 0.1MPa).
Advantages: High strength (tensile strength ≥ 375MPa), light weight (40% lighter than cast iron), but high price (about 20% -30% more expensive for the same specifications).
2、 Performance comparison
Parameter cast iron flap door steel flap door
Corrosion resistance requires galvanizing treatment (lifespan 10-15 years). Stainless steel material has a lifespan of up to 30 years
The opening and closing force requires the assistance of counterweight blocks (large head loss). The floating box design can automatically open and close
Anti theft and easy to steal (high recycling value) composite materials have no recycling value
3、 Suggested application scenarios
Priority should be given to cast iron flap doors
The budget is limited and the medium is not highly corrosive (such as agricultural irrigation and drainage).
Temporary flood control projects that require quick installation (concrete foundation is sufficient).
Prioritize choosing steel snap doors
Protection against seawater backflow (316 stainless steel).
High frequency operation scenarios (such as sewage treatment plants, with an annual opening and closing of more than 5000 times).
