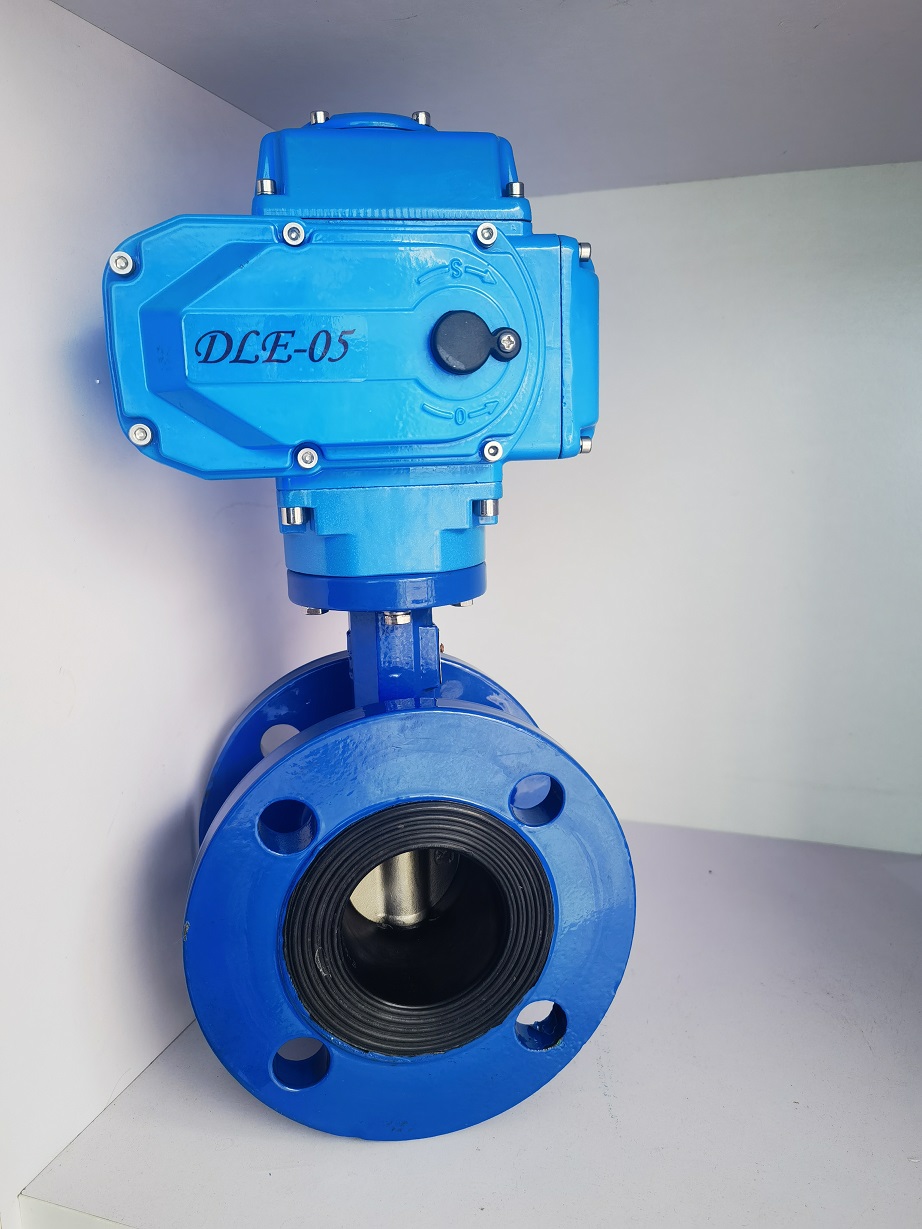

Electric switch butterfly valve

電動(dòng)開(kāi)關(guān)蝶閥is commonly known as an electric double position cut-off butterfly valve, which is generally divided into two states: fully open and fully closed. The electric butterfly valve can automatically stop when fully open or fully closed under electronic control, and cannot directly interact with the flow feedback device of the pipeline system to adjust the flow rate. According to the different connection methods, there are mainly flange type electric switch butterfly valves and clamp type electric switch butterfly valves. Different sealing structures (soft sealing structure and metal hard sealing structure) can be selected to correspond to different media and are generally suitable for two position switch (quick cut-off) control applications.

Valve name: Electric switch butterfly valve
Valve models: D971X, D941X, D973H, D943H
Diameter specification: DN50-DN1200mm
Structural form: midline type, triple eccentric
Valve body material: cast steel WCB, stainless steel 304, 316
Nominal pressure: PN6, PN10, PN16, PN25, PN40
Applicable temperature: -40 ℃~450 ℃
Application scope: gases, water, oil products, steam, corrosive fluids
Product features: The switch is in place in a timely manner, the switch completion is good, and there is basically no error
