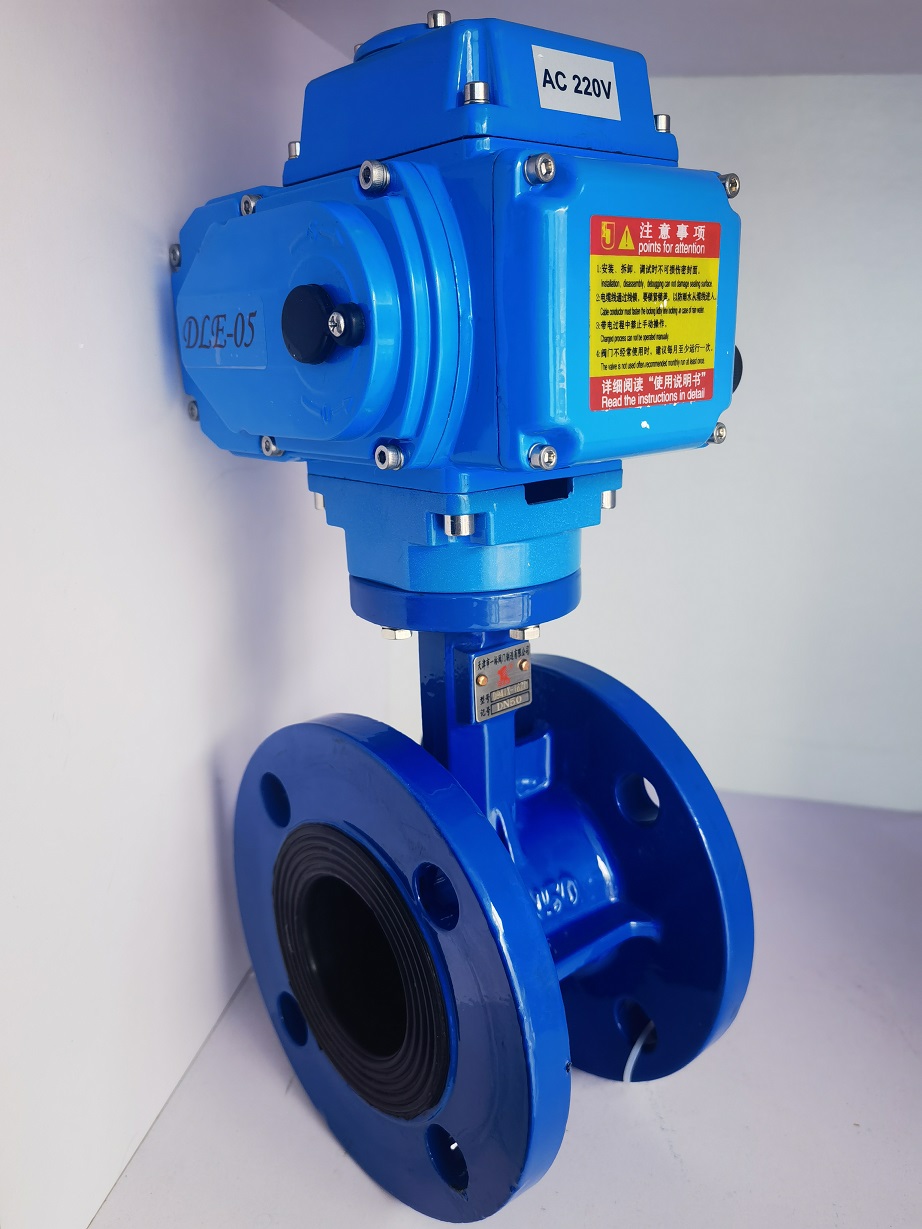

Electric flange butterfly valve

電動法蘭蝶閥Composed of an electric actuator and a flange butterfly valve, it can be divided into switch control type and intelligent adjustment type (4-20mA analog signal control) according to different working modes and conditions. The sealing forms include soft seal and hard seal. Through the operation of the electric actuator, the rotating valve stem drives the disc plate to open and close within the range of 0-90 °. The structural performance of electric flange butterfly valves is superior to that of clamp type butterfly valves, and they generally have higher pressure resistance. It is recommended to use electric flange butterfly valves for working conditions with a diameter exceeding DN600.

電動法蘭蝶閥
D941X，D941F46，D943HValve models: D941X, D941F46, D943H
Diameter specification: DN50~DN1200
Structural form: midline type, triple eccentric (soft seal, hard seal)
Valve body material: cast steel WCB, stainless steel 304, stainless steel 316
Nominal pressure: PN10, PN16, PN25, PN40
Applicable temperature: -40 ℃~450 ℃
Application scope: gases, water, oil products, steam, corrosive fluids
Product features: Reliable sealing, suitable for high-pressure applications and pipelines with relatively large diameters
產品特點：密封可靠，可用于壓力高的場合，及口徑相對較大的管道

公稱通徑	DN50～DN1200(mm)
公稱壓力	PN1.0、1.6、2.5、6.4MPa
連接形式	法蘭式連接
閥體材質	鑄鐵、鑄鋼、不銹鋼、鉻鉬鋼、合金鋼
密封材料	橡膠、PTFE、PPL、不銹鋼、聚內脂、抗磨材料
動作范圍	0～90°
泄露量	按GB/T4213-92，為Kv值的10-4，軟密封（零泄露）
適用介質	水、蒸氣、油品、酸類腐蝕性介質等
溫度范圍	軟密封：-29℃～180℃ ；硬密封：-40℃～550℃
