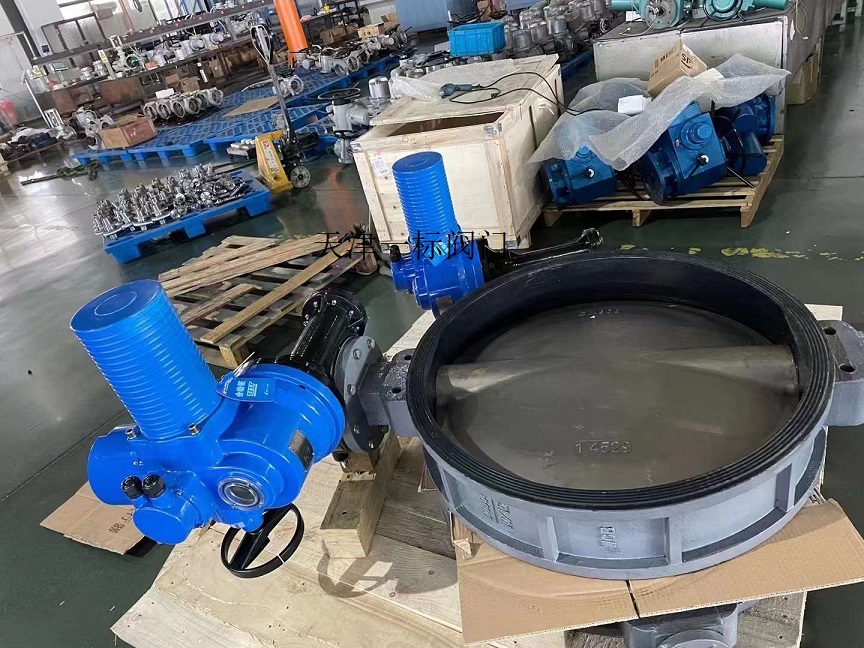

Fluorine lined electric butterfly valve

Main performance parameters of the product
Electric actuator ordinary switch type, passive contact switch type, potentiometer type with resistance output/potentiometer type with 4-20mA, adjustable input/output 4-20mA
Explosion proof electric actuator EX d Ⅱ BT4 EX d11 CT6 regulating type, switch type

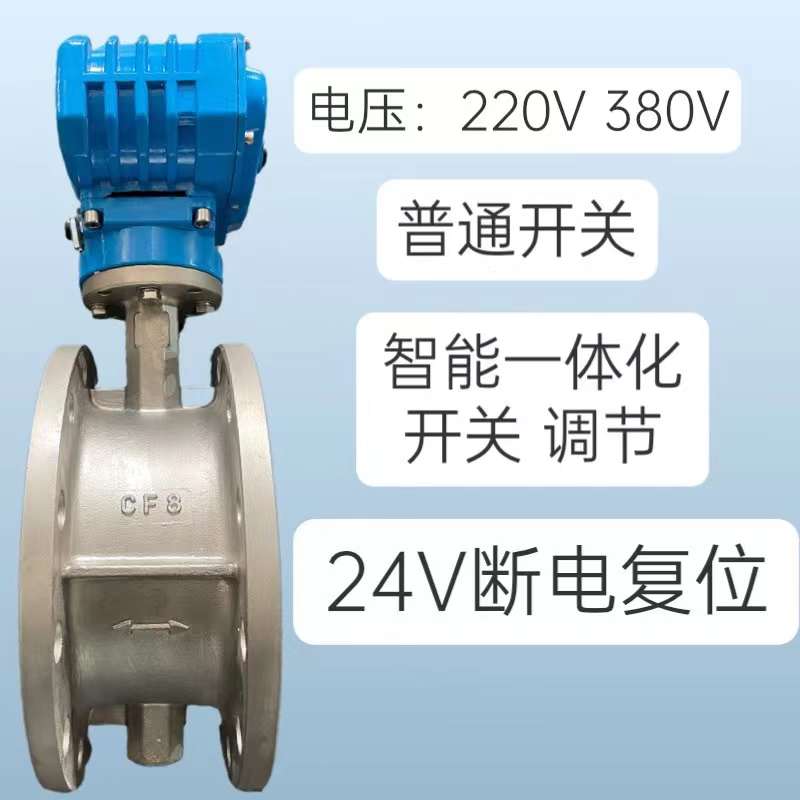

Voltage AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter DN40-2000mm
Nominal pressure 1.0MPa~1.6MPa
Applicable temperature -30~+150 ℃
Connection methods include clamp type, lug clamp type, flange type
Valve body structure type A
Valve body material WCB, 304, 316, 316L, etc
Valve plate material WCB+PTFE/F46, 304+PTFE/F46, 316, 316L, 2507, 1.4529, etc
Valve seat lining PTFE/F46
Applicable media include water, liquid, gas, oil, powder, steam
