YT1000L

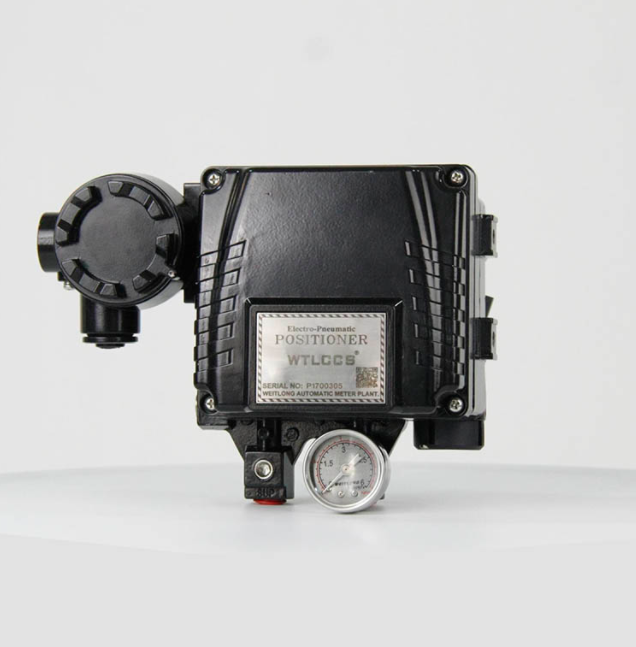

The YL-1000L electric valve positioner is a device that controls valve opening by sending a 4-20mA DC electrical signal from a controller or control system and supplying air to a linear pneumatic actuator.
No resonance phenomenon within the range of 5-200Hz;
Forward and reverse, easy conversion between single acting and double acting;
For small actuators, vibration can be prevented by reducing the throttle hole of the locator;
Low air consumption and good economy;
It is possible to achieve split range control within 1/2 range without replacing parts.
技術(shù)參數(shù)
|
項目 |
單作用 |
雙作用 |
|
輸入信號 |
4~20mA |
|
|
阻抗 |
250+15 ohm |
|
|
輸入壓力 |
1.4~7Kgf/cm3 20~100psi |
|
|
形成范圍 |
10~150mm |
|
|
氣源接口 |
NPT 1/4 |
|
|
壓力表接口 |
NPT 1/8 |
|
|
電源接口 |
PF 1/2 (G 1/2 ) |
|
|
防爆等級 |
Ex dll BT5,Ex iaII CT6 |
|
|
防護等級 |
IP66 |
|
|
環(huán)境溫度 |
-20~70℃(-4~158℉) |
|
|
環(huán)境濕度 |
10~90RH |
|
|
直線性 |
±1%F.S |
±2%F.S |
|
滯后讀 |
±1%F.S |
|
|
靈敏度 |
±0.2%F.S |
±0.5%F.S |
|
重復性 |
|
|
