IQC18_IQC25_IQC35_IQC40_IQC70_IQC90

羅托克電動裝置

型號	轉(zhuǎn)數(shù)	轉(zhuǎn)矩
IQC18	18/24	108
IQC25	18/24/36/48	450
IQC35	18/24/36/48	650
IQC40	18/24/36/48	1100
IQC70	18/24/36/48	1500
IQC90	24	3000

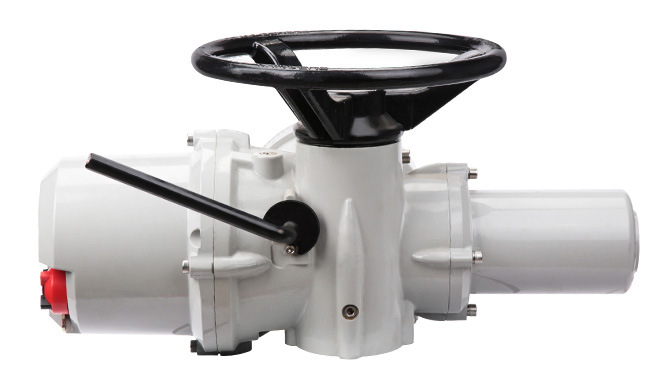

Product Overview
The IQC series is an intelligent multi turn electric actuator from the Rotork brand, designed with mechatronics integration and suitable for valve control (such as gate valves, globe valves, ball valves, etc.). It is widely used in fields such as power, petroleum, chemical, and water treatment.
Core features:
Intelligent control: supports 4-20mA, 0-10V, MODBUS and other signal inputs, with a positioning accuracy of 0.4%.
Protection performance: IP67/IP68 protection level, suitable for outdoor and harsh environments.
Remote operation: Supports infrared remote control and non-invasive magnetic control knob settings, without the need for cover opening debugging.
Fault protection: equipped with functions such as locked rotor detection, phase loss protection, and instantaneous reverse protection.
