501T

Brand：Pneumatic eccentric butterfly valve 型號：501T

1、 Product Overview

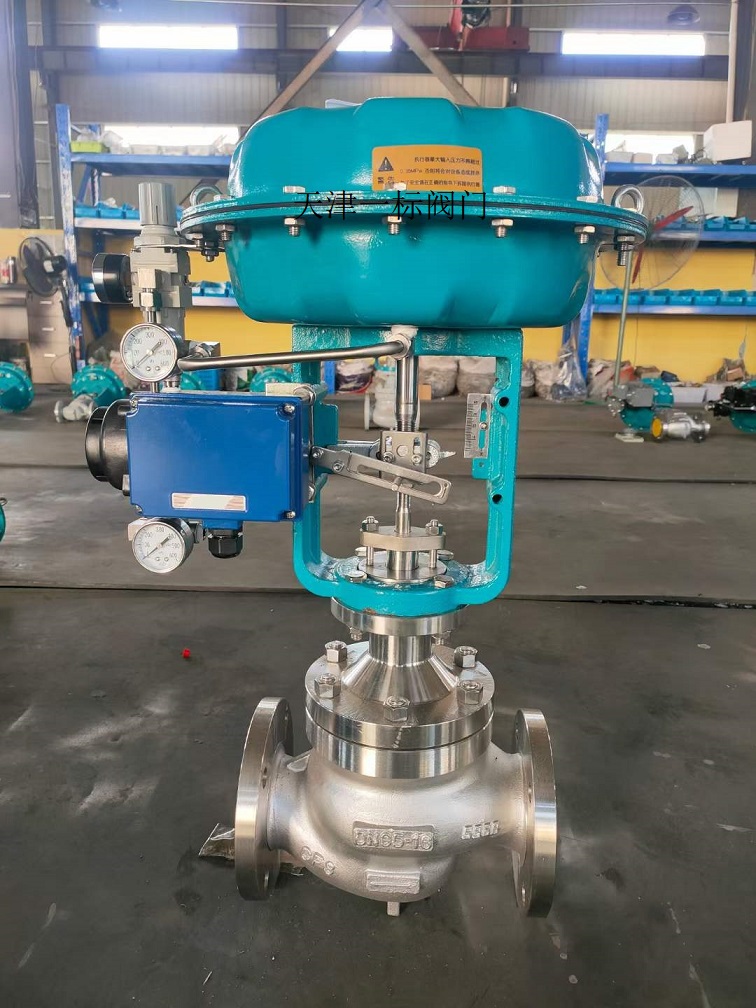

501T is a top guided single seat regulating valve of KOSO 200 series, which adopts a compact design and is suitable for high-precision flow control, especially for harsh working conditions.
2、 Key parameters
Structural characteristics
Small in size and simple in structure, supporting special structures such as bellows sealing, steam jacket, and extended valve cover.
Valve core form: P-hole single seat or Q-hole single seat, flow characteristics support linear, equal percentage, and on-off.
Technical specifications
Nominal diameter: 1/2 "(15A) to 8" (200A) (DN15-DN200).
Pressure rating: ANSI Class 150-1500, JIS 10K-40K.
Applicable temperature: -196 ℃ to+538 ℃ (depending on the valve body material).
Connection methods: flange (RF/RTJ), welding (SW/BW).
Material Options
Valve body: SCPH2/WCB, SCPH21/WC6, SCS13/CF8 (stainless steel), etc.
Valve internals: SUS316+Satellite or SUS316+PTFE coating.
